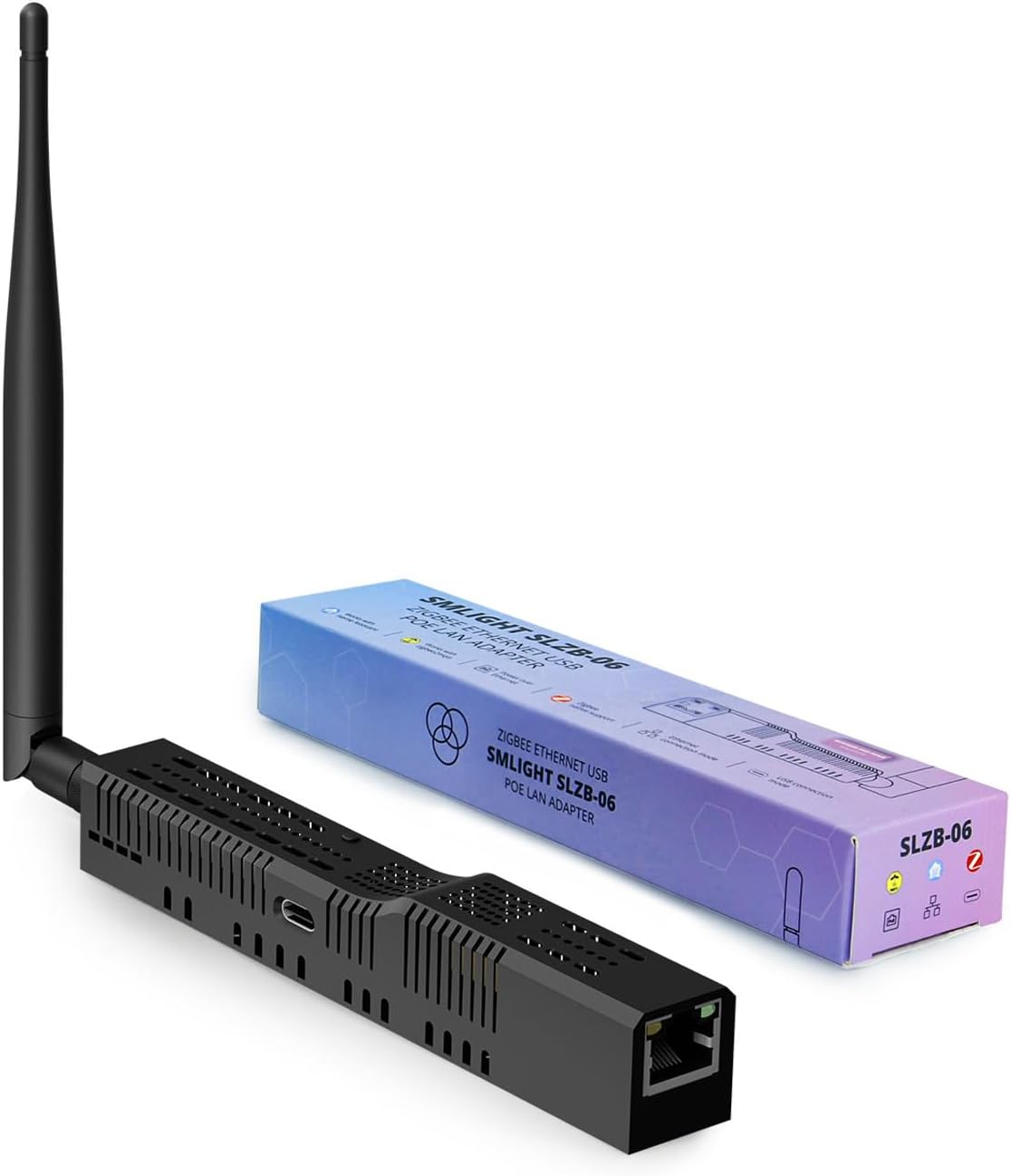

SMLIGHT SLZB-06 - Zigbee 3.0 Coordinator with PoE
Based on CC2652P Zigbee chip Recommended by Zigbee2MQTT
AED 349.00AED 299.00
Out of stock
SMLIGHT SLZB-06 - Zigbee 3.0 to Ethernet,USB,and WiFi Gateway Coordinator with PoE,Universal Zigbee USB Gateway for Home Assistant/ Zigbee2MQTT/ZHA,Wireless Zigbee 3.0 USB Adapter



【Powerful Features】SLZB-06 can be used as a Zigbee coordinator/Router/Signal extender(+20dB amplifier&+5dB antenna,Having a wider signal coverage range)
【Three Connection Methods】LAN Ethernet,USB or WiFi connection.Choose mode through firmware or button.

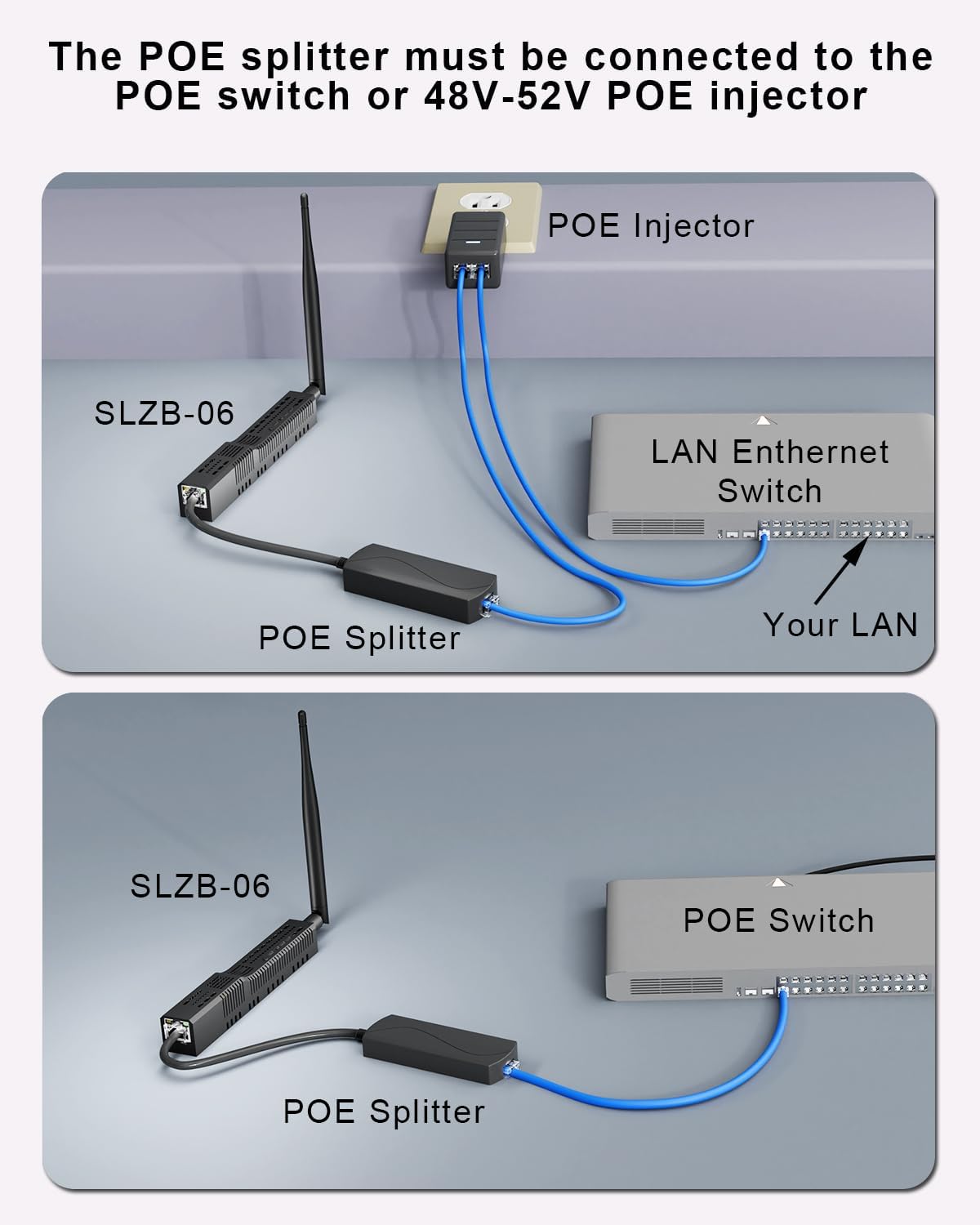

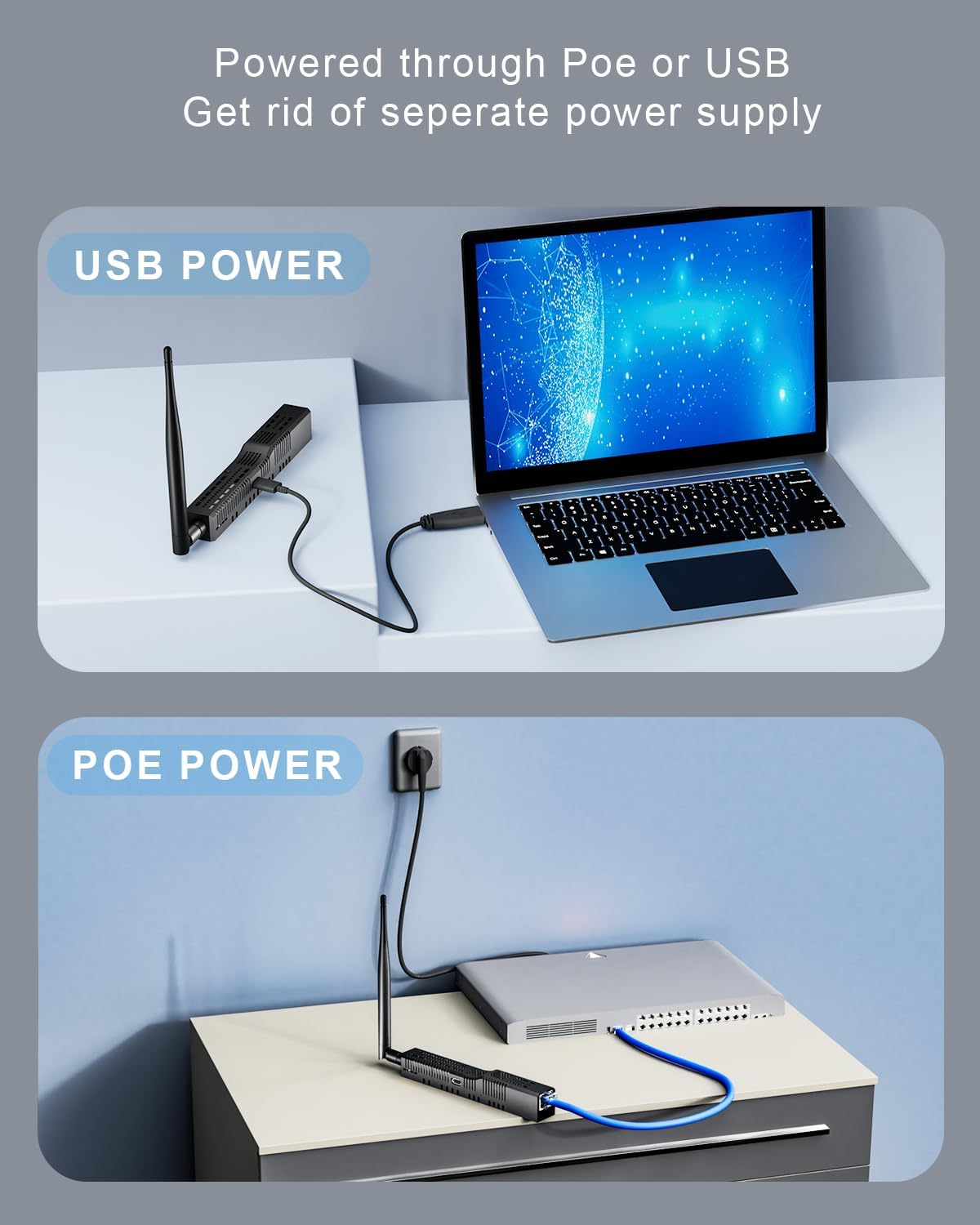

【Two Power Supply Methods】Can be powered through POE or USB (Package includes microUSB Type-c interface).
【Widely Applicable】Works with Home Assistant,ZHA,Zigbee2MQTT.Experimental Matter-over-Thread support!
【Powerful Chips】Based on CC2652P Zigbee chip with Cortex M4F 48Mhz, 88kB RAM; Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz + 16Mb memory;Zigbee and Core firmware OTA update over web-interface (one-click update).
SLZB-06 SPECIFICATIONS | |
Main Zigbee 3.0 chip | CC2652P Texas Instruments |
Main control chip | ESP32 Espressif |
USB/UART converter | CP2102 |
Ethernet SoC | LAN8720 |
Zigbee SoC output gain | +20dB |
Additional gain antenna | +5dB |
Ethernet support | Yes |
WiFi support | Yes |
PoE support | Yes |
PoE standard supported | IEEE 802.3af (15W) |
USB Type-C control | Yes |
ESP32 Flasher integrated | Yes, based on CP2102 |
ESP32 Autoboot | Yes, through DTR / RTS |
Pre-flashed | Yes, Zigbee and ESP |
Zigbee 3.0 Coordinator mode | Yes |
Zigbee 3.0 Router mode | Yes |
Zigbee to Ethernet | Yes |
Zigbee to USB | Yes |
Zigbee2MQTT support | Yes |
ZHA support | Yes |
Tiny design | Yes, 160x22x24mm |
Operating environment | +5 – +35 C |
